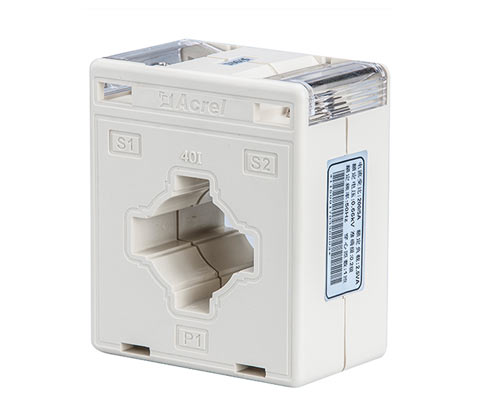

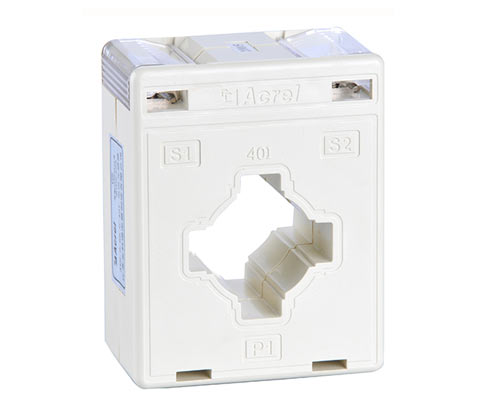

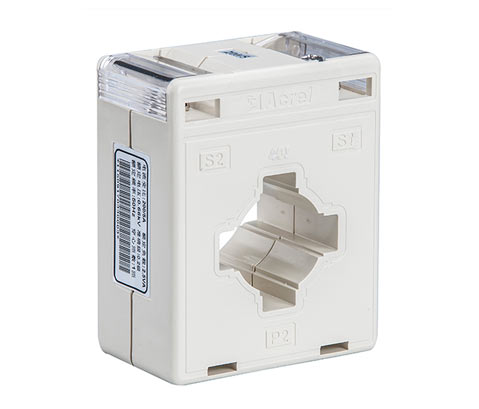

AKH-0.66系列電流互感器
首頁 > 產品中心 > 互感器/變送器 > AKH-0.66系列電流互感器
應用范圍：
低壓配電系統電流采集訂貨范例：
具體型號：AKH-0.66/I 30I 100/5|
規格 |
額定電流比(A) |
準確級及相應額定負荷(VA) |
穿心 匝數 (匝) |
母排規格(mm)/根數 |
電纜最大 外徑(mm) |
安裝方式 |
||
|
0.2級 |
0.5級 |
1級 |
||||||
|
30I |
15/5(1) |
|
|
1.5 |
5 |
/ |
Φ22 |
A |
|
20/5(1) |
|
|
1.5 |
4 |
||||
|
25-30/5(1) |
|
|
1.5 |
3 |
||||
|
40-60/5(1) |
|
|
1.5 |
2 |
||||
|
75-100/5(1) |
|
|
1.5 |
1 |
30×10/1 |
AB |
||
|
150-200/5(1) |
|
2.5 |
|
1 |
||||
|
250/5(1) |
|
3.75 |
|
1 |
||||
|
300-450/5(1) |
|
5 |
|
1 |
||||
|
500/5(1) |
|
10 |
|
1 |
||||
|
600/5(1) |
|
10 |
|
1 |
||||
|
40I |
10/5(1) |
|
|
1.5 |
8 |
/ |
Φ30 |
A |
|
15/5(1) |
|
|
1.5 |
5 |
||||
|
20/5(1) |
|
|
1.5 |
4 |
||||
|
25-30/5(1) |
|
|
1.5 |
3 |
||||
|
40-60/5(1) |
|
|
1.5 |
2 |
||||
|
75/5(1) |
|
|
1.5 |
1 |
40×10/1 |
AC |
||
|
100/5(1) |
|
|
1.5 |
1 |
||||
|
150/5(1) |
|
|
2.5 |
1 |
||||
|
200/5(1) |
|
2.5 |
|
1 |
||||
|
250/5(1) |
|
3.75 |
|
1 |
||||
|
300-450/5(1) |
|
5 |
|
1 |
||||
|
500-800/5(1) |
|
10 |
|
1 |
||||
|
1000/5(1) |
10 |
|
|
1 |
||||
|
60I |
150/5(1) |
|
|
2.5 |
1 |
60×10/1 60×6/1-2 |
Φ44 |
AC |
|
200/5(1) |
|
2.5 |
|
1 |
||||
|
250/5(1) |
|
3.75 |
|
1 |
||||
|
300-450/5(1) |
|
5 |
|
1 |
||||
|
500-800/5(1) |
|
10 |
|
1 |
||||
|
1000-1250/5(1) |
10 |
|
|
1 |
||||
|
1500-2000/5(1) |
20 |
|
|
1 |
||||
|
2500/5(1) |
30 |
|
|
1 |
||||
|
80I |
150/5（1） |
|
|
2.5 |
1 |
80×10/1 |
Φ50 |
AC |
|
200-250/5(1) |
|
2.5 |
|
1 |
||||
|
300-450/5(1) |
|
5 |
|
1 |
||||
|
500-800/5(1) |
|
10 |
|
1 |
||||
|
1000-1250/5(1) |
10 |
|
|
1 |
||||
|
1500-2000/5(1) |
20 |
|
|
1 |
||||
|
2500-3000/5(1) |
30 |
|
|
1 |
||||
|
規格 |
額定電流比(A) |
準確級及相應額定負荷(VA) |
穿心匝數(匝) |
母排規格(mm)/根數 |
安裝方式 |
||
|
0.2級 |
0.5級 |
1級 |
|||||
|
30II |
100/5(1) |
|
|
1.5 |
1 |
30x10/1-2 |
AC |
|
150/5(1) |
|
|
1.5 |
1 |
|||
|
200/5(1) |
|
2.5 |
|
1 |
|||
|
250/5(1) |
|
3.75 |
|
1 |
|||
|
300-450/5(1) |
|
5 |
|
1 |
|||
|
500-600/5(1) |
|
10 |
|
1 |
|||
|
40II |
100/5(1) |
|
|
1.5 |
1 |
40×10/ 1-2 |
AC |
|
150/5(1) |
|
|
2.5 |
1 |
|||
|
200/5(1) |
|
2.5 |
|
1 |
|||
|
250/5(1) |
|
3.75 |
|
1 |
|||
|
300-450/5(1) |
|
5 |
|
1 |
|||
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000/5(1) |
10 |
|
|
1 |
|||
|
50Ⅱ |
150 |
|
|
2.5 |
1 |
50×10/ 1-2 |
|
|
200-250/5(1) |
|
2.5 |
|
1 |
|||
|
300-450/5(1) |
|
5 |
|
1 |
|||
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500/5(1) |
20 |
|
|
1 |
|||
|
60Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
60×10/ 1-2 |
C |
|
300-450/5(1) |
|
5 |
|
1 |
|||
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500/5(1) |
30 |
|
|
1 |
|||
|
60×50Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
60×10/ 1-3 |
D
|
|
300-450/5(1) |
|
5 |
|
1 |
|||
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500/5(1) |
30 |
|
|
1 |
|||
|
80Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
80×10/ 1-2 |
|
|
300-450/5(1) |
|
5 |
|
1 |
|||
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-3000/5(1) |
30 |
|
|
1 |
|||
|
80×50Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
80×10/ 1-3 |
|
|
300-450/5(1) |
|
5 |
|
1 |
|||
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-3000/5(1) |
30 |
|
|
1 |
|||
|
100Ⅱ |
300-450/5(1) |
|
5 |
|
1 |
100×10/ 1-2 |
|
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-3000/5(1) |
30 |
|
|
1 |
|||
|
100×50Ⅱ |
300-450/5(1) |
|
5 |
|
1 |
100×10/ 1-3 |
|
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-3000/5(1) |
30 |
|
|
1 |
|||
|
100×80Ⅱ |
600-800/5(1) |
|
10 |
|
1 |
100×10/ 1-4 |
|
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-4000/5(1) |
30 |
|
|
1 |
|||
|
120×50Ⅱ |
500-800/5(1) |
|
10 |
|
1 |
120×10/ 1-3 |
|
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
|
130×50Ⅱ |
600-800/5(1) |
|
10 |
|
1 |
125×10/1-3 130×10/1-3 60×10/2-6 |
|
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
|
120×80Ⅱ 150×50Ⅱ |
1000-1250/5(1) |
10 |
|
|
1 |
120×10/ 1-4 |
D |
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
|
170×100Ⅱ |
1500-2000/5(1) |
15 |
|
|
1 |
170×10/1-3 100×10/3-6 |
|
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
|
180×50Ⅱ |
1200-2000/5(1) |
10 |
|
|
1 |
180×10/1-3 |
|
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
|
200×50Ⅱ 220×50Ⅱ 260×50Ⅱ |
1500-2000/5(1) |
20 |
|
|
1 |
200×10/1-3 100×10/4-6 |
|
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
|
260×100Ⅱ |
1200-1500/5(1) |
10 |
|
|
1 |
250×10/2-5 125×10/4-10 |
|
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-6300/5(1) |
30 |
|
|
1 |
|||
|
規格 |
額定電流比(A) |
準確級及相應額定負荷(VA) |
穿心匝數(匝) |
母排規格(mm)/根數 |
安裝方式 |
|
|
0.2級 |
0.5級 |
|||||
|
60Ⅲ |
200-300/5(1) |
|
2.5 |
1 |
60×10/ 1-3 |
E |
|
400/5(1) |
|
5 |
1 |
|||
|
500-800/5(1) |
|
10 |
1 |
|||
|
1000/5(1) |
10 |
|
1 |
|||
|
1200-1500/5(1) |
15 |
|
1 |
|||
|
2000/5(1) |
20 |
|
1 |
|||
|
2500/5(1) |
30 |
|
1 |
|||
|
80Ⅲ |
300-400/5(1) |
|
5 |
1 |
80×10/ 1-3 |
|
|
500-800/5(1) |
|
10 |
1 |
|||
|
1000/5(1) |
10 |
|
1 |
|||
|
1200-1500/5(1) |
15 |
|
1 |
|||
|
2000/5(1) |
20 |
|
1 |
|||
|
2500-3000/5(1) |
30 |
|
1 |
|||
|
100Ⅲ |
600-800/5(1) |
|
10 |
1 |
100×10/ 1-3 |
|
|
1000/5(1) |
10 |
|
1 |
|||
|
1200-1500/5(1) |
15 |
|
1 |
|||
|
2000/5(1) |
20 |
|
1 |
|||
|
2500-5000/5(1) |
30 |
|
1 |
|||
|
130Ⅲ |
2000/5(1) |
20 |
|
1 |
130×10/1-3 125×10/1-3 |
|
|
2500-5000/5(1) |
30 |
|
1 |
|||
|
規格 |
額定電 流比 |
準確級 |
穿心 匝數 |
母排規格(mm)/根數 |
電纜最大 外徑(mm) |
安裝方式 |
|
0.2級 |
||||||
|
Z-10 |
50A/25mA |
10Ω |
|
1 |
Φ10 |
導軌式 |
|
規格 |
額定電 流比 |
準確級及相應額定負荷 |
穿心 匝數 |
電纜最大 外徑(mm) |
|
0.2級 |
||||
|
Z-15 |
100A/20mA |
10Ω |
1 |
Φ15 |
|
規格 |
額定電流比 |
準確級及相應額定負荷（VA/Ω） |
電纜最大外徑(mm) |
|
|
0.5級 |
1級 |
|||
|
Z-3×Φ20 |
5-100/5A |
|
1.5VA |
Φ20 |
|
150/5A |
1.5VA |
|
||
|
200/5A |
2.5VA |
|
||
|
5-100/1A |
|
1.5Ω |
||
|
150/1A |
1.5Ω |
|
||
|
200/1A |
2.5Ω |
|
||
|
5-200A/50mA |
0.5VA |
|
||
|
規格 |
額定電流比 |
準確級及相應額定負荷(Ω) |
穿心 匝數 |
電纜最大 外徑(mm) |
||
|
0.2級 |
0.5級 |
1級 |
||||
|
W-7 |
5-15/5mA |
10 |
|
|
1 |
Φ7 |
|
10-30/10mA |
10 |
|
|
1 |
||
|
5/20mA |
|
10 |
|
2 |
||
|
10-15/20mA |
|
10 |
|
1 |
||
|
20-60/20mA |
10 |
|
|
1 |
||
|
規格 |
額定電流比 |
準確級及相應額定負荷(Ω) |
穿心 匝數 |
電纜最大 外徑(mm) |
||
|
0.2級 |
0.5級 |
1級 |
||||
|
W-8 |
5-15/5mA |
10 |
|
|
1 |
Φ8 |
|
10-30/10mA |
10 |
|
|
1 |
||
|
5/20mA |
|
10 |
|
2 |
||
|
10-15/20mA |
|
10 |
|
1 |
||
|
20-60/20mA |
10 |
|
|
1 |
||
|
規格 |
額定電流比 |
準確級及相應額定負荷(Ω) |
穿心 匝數 |
電纜最大 外徑(mm) |
||
|
0.2級 |
0.5級 |
1級 |
||||
|
W-12 |
5/20mA |
|
10 |
|
4 |
Φ12 |
|
10-15/20mA |
|
10 |
|
2 |
||
|
20/20mA |
|
10 |
|
1 |
||
|
30-100/20mA |
10 |
|
|
1 |
||
|
規格 |
額定電流比 |
準確級及相應額定負荷(Ω) |
穿心 匝數 |
電纜最大 外徑(mm) |
||
|
0.2級 |
0.5級 |
1級 |
||||
|
W-20 |
5/20mA |
|
10 |
|
4 |
Φ20 |
|
10-15/20mA |
|
10 |
|
2 |
||
|
20/20mA |
|
10 |
|
1 |
||
|
30-200/20mA |
10 |
|
|
1 |
||
|
規格 |
額定電 流比 |
準確級及相應額定負荷(Ω) |
耐壓 |
開路電壓 |
環境溫度℃ |
安裝方式 |
||
|
0.2級 |
0.5級 |
1級 |
||||||
|
EMS |
50A/10mA |
10 |
|
|
3kV |
≤7.8V |
-20℃~70℃ |
導軌 |
